Explosion proof audible and visual alarm G001, gas detector supporting audible and visual alarm accessories - noan environment explosion-proof audible and visual alarm

Products G001A

Features

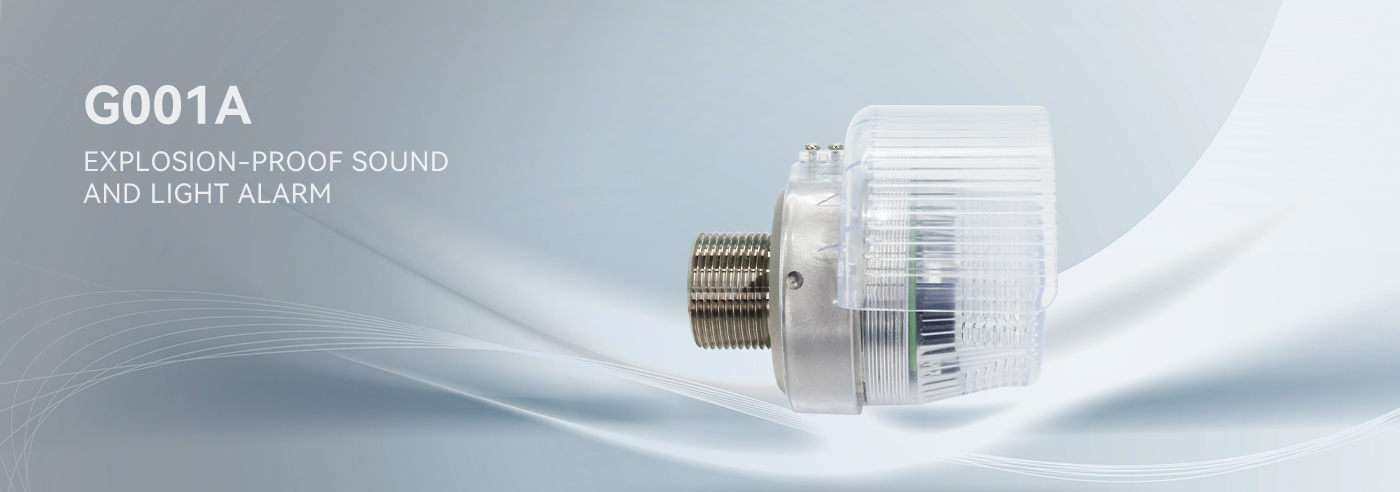

G001AExplosion-proof sound and light alarm

- Used in conjunction with point gas detectors for integrated use. - Metal base and ultra strong impact resistant lampshade. - Compact in size, simple in structure, and easy to install.

- Control the sound and light alarm through the detector output signal - High brightness LED light source, long service life.

- High pitched alarm sound and high brightness alarm light, low power consumption. - Explosion proof structure, high protection level.

technical specification

POWER SOURCE	24VDC
WORKING CURRENT	≤60mA
POWER CONSUMPTION	≤1W
ALARM SOUND	>95dB@30cm
EXPLOSION-PROOF GRADE	Ex db ib lIC T6 Gb/ Ex ib tb lllC T6 Db
PROTECTION LEVEL	IP67

ELECTRICAL INTERFACE	M25x1.5
ENVIRONMENTAL TEMPERATURE	-40℃~70℃
RELATIVE HUMIDITY	0~99%RH/non-condensing
DIMENSIONS	76.9mmx73.8mm (WxHxD)
LAMPSHADE MATERIAL	Anti-static PC
LAMP SHADE COLOR	Transparent

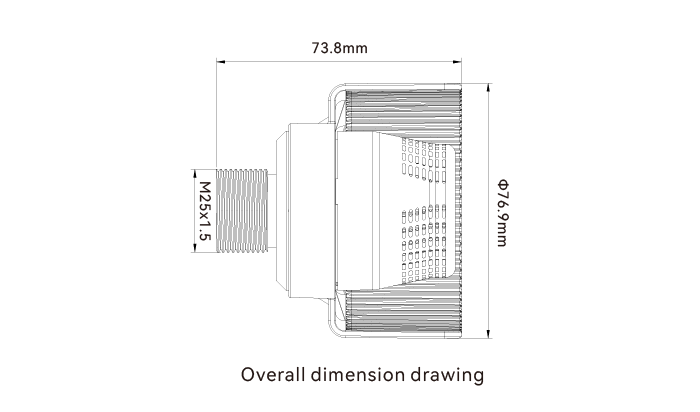

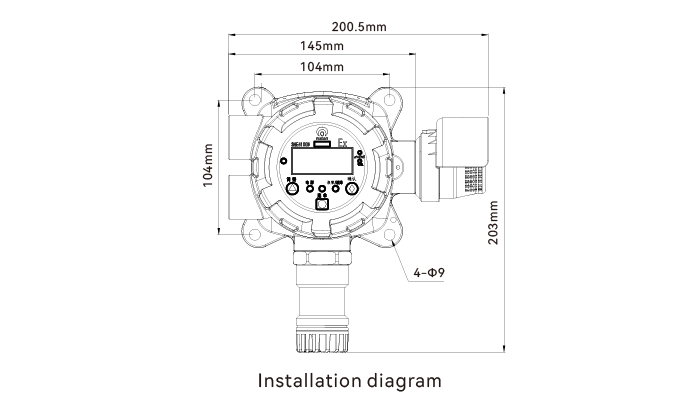

Product structure and construction drawings
