Products GTYQ-IR500L

Features

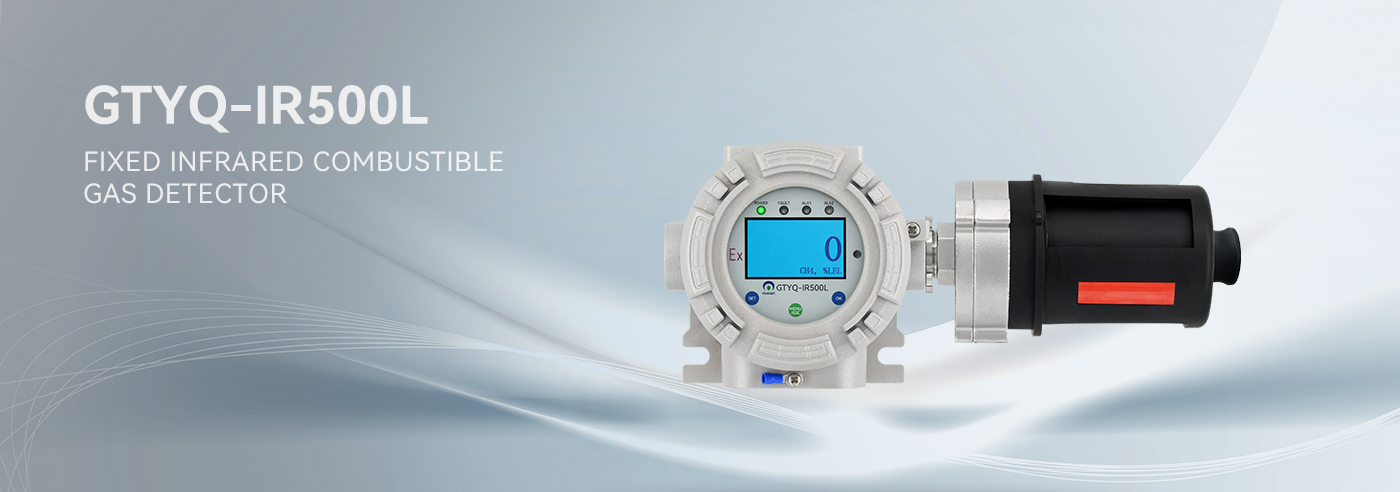

GTYQ-IR500LINFRARED COMBUSTIBLE GAS DETECTOR

- Detect different kinds of hydrocarbon combustible gas. - With intelligent self-inspection and automatic fault alarm function.

- With high reliability dual optical path infrared sensor, long life-time, quick response, high precision. - Supporr detection in anoxic, anaerobic or high concentration combustible gas environment.

- With heating function for lens and chamber, meet the normal use in high humidity environment. - With OLED HD display, both Chinese and English menus, available with infrared remote control and magnetic adjustment.

technical specification

DETECTION PRINCIPLE	Infrared absorption
DETECTION RANGE	3%LEL~100%LEL (Standard detection range) 0~0.5%Vol···5%Vol (Available range)
DETECTION METHOD	Diffusion
ACCURACY	±2%F.S.
REPEATABILITY	±2%
RESOLUTION	1%LEL(Standard detection range) , (0.1% /0.01% /0.001%) Vol (Available range)
RESPONSE TIME	T90≤10S
DISPLAY METHOD	OLED HD display, LED indication
ALARM METHOD	LED lighting alarm(Audible and visual alarm is optional)
ADJUSTMENT METHOD	Infrared remote control, magnetic
POWER SUPPLY	24VDC(18-32VDC)
POWER CONSUMPTION	≤ 2W, ≤ 7W (heating on)

OUTPUT SIGNAL	4~20mA (three wires) 4~20mA+HART (optional) RS485 Modbus (four wires) Three sets of relay switch output (2A 30V DC) 24V DC output (driving sound and light alarm) 4G/5G/NB-IoT/LORA wireless communication transmission (optional)
ELECTRIC CONNECTION	Three interraces, NPT3/4"(F), NPT1/2"(F), M25x1.5 (According to customer’s requirement)
WORKING TEMPERATURE	-40℃-+70℃
WORKING HUMIDITY	0-99%RH/ No condensation
SENSOR LIFETIME	≥10years
EX-PROOF CERTIFICATE	Ex db llC T6 Gb/ Ex tb lIIC T80°C Db
IP GRADE	IP67
HOUSING MATERIAL	Aluminium alloy/ SS316
OVERALL DIMENSIONS	306mmx126mmx118mm(WxHxD)
WEIGHT	2,500g(Aluminium alloy); 3,850g(SS316)
