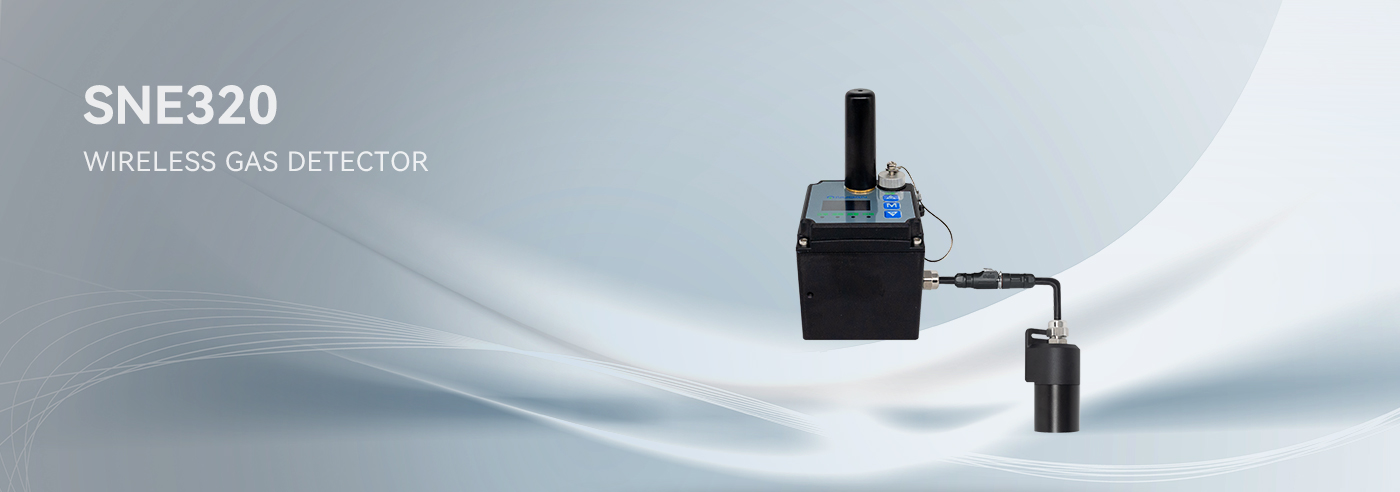

SNE320 wireless gas detector

Products SNE320

Features

- Ultra low power consumption design, long batterr life. - Split design, precise monitoring of sensor positioning.

- Plug in intelligent probe for easy replacement. - Magnetic installation (optional installation surrace).

- NB-IOT wireless IoT, MQTT communication.

GAS DETECTION	Combustible gas, oxygen, toxic and harmful gases
DETECTION PRINCIPLE	Infrared, electrochemical
SAMPLING METHOD	Diffusion type
DISPLAY MODE	LCD display
ALARM MODE	LED indication, remote alarm
POWER SUPPLY	DC 3.7V/ 7000mAh
CHARGING VOLTAGE	6V
CHARGING TIME	17 hours
EXPLOSION PROOF MARK	Ex db ib Ⅱ C T4 Gb

BATTERY LIFE	1 year
OUTPUT SIGNAL	NB-IOT wireless IoT, MQTT communication
ENVIRONMENTAL TEMPERATURE	-25℃~55℃
RELATIVE HUMIDITY	95%RH/ No condensation
SENSOR LIFE	1~5years (depending on different sensors)
PROTECTION LEVEL	IP66

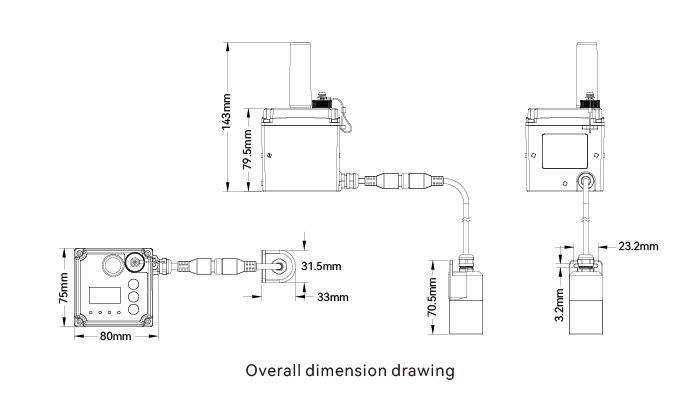

OUTLINE DIMENSIONS	Transmitter: 80mmx75mmx143mm Probe: 33mmx31.5mmx70.5mm
WEIGHT	1,000g
