Products GTYQ-IR500S
GTYQ-IR500S

Features

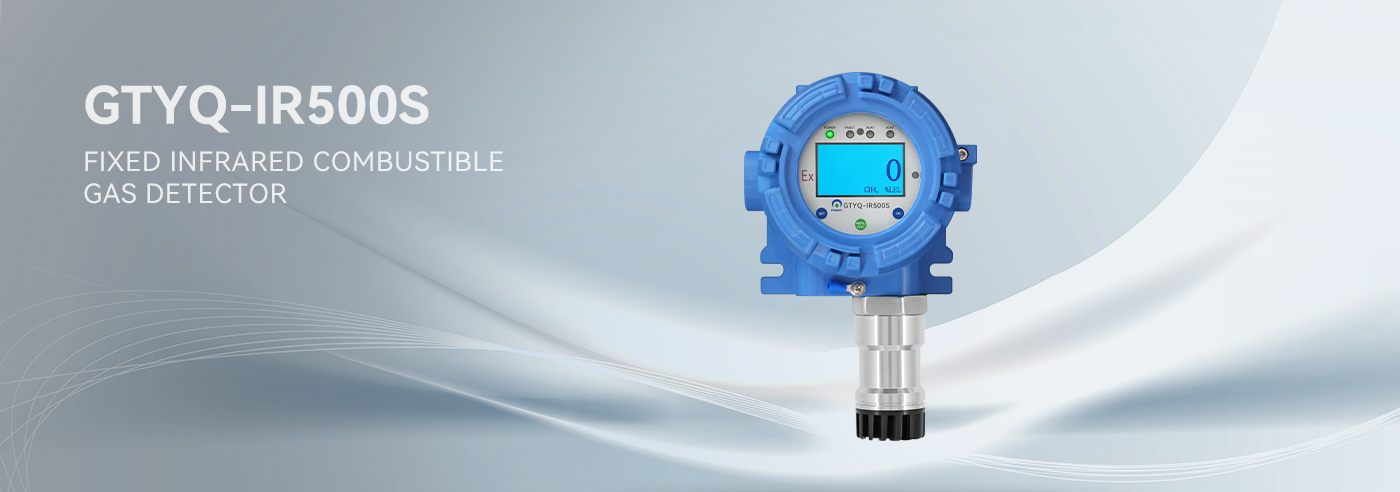

GTYQ-IR500SINFRARED COMBUSTIBLE GAS DETECTOR

- Plug in miniature infrared sensor, digital signal output, low power consumption. - Intelligent compensation for temperature and humidity, long-term stable high, no need for frequent calibration, easy maintenance.
- Optical detection, anti toxicity, normal use in anaerobic and hypoxic environments, long lifespan. - LCD high-deffnition display, LED indicating working status, integrated sound and light alarm.
- Dual light path detection, anti-interrerence differential algorithm, to avoid false alarms caused by water vapor and dust interrerence. - Explosion proof infrared remote control and magnetic rod, on-site adjustment and calibration.

technical specification

DETECTION PRINCIPLEInfrared absorption
DETECTION RANGE

3%LEL~100%LEL (Standard detection range)

0~5%Vol···100%Vol (Available range)

DETECTION METHOD

Diffusion

ACCURACY±3%F.S.
REPEATABILITY±2%
RESOLUTION1%LEL(Standard detection range) , (0.05% / 1%) Vol (Available range)
RESPONSE TIMET90≤10S
DISPLAY METHODOLED HD display, LED indication
ALARM METHODLED lighting alarm(Audible and visual alarm is optional)
ADJUSTMENT METHODInfrared remote control, magnetic
POWER SUPPLY24VDC(15-32VDC)
POWER CONSUMPTION≤ 2W, (Equipped with explosion-proof sound and light alarm ≤ 4W)
OUTPUT SIGNAL

4~20mA (three wires)

4~20mA+HART (optional)

RS485 Modbus (four wires)

Three sets of relay switch output (2A 30V DC)

24V DC output (driving sound and light alarm)

4G/5G/NB-IoT/LORA wireless communication transmission (optional)

ELECTRIC CONNECTIONThree interraces, NPT3/4"(F), NPT1/2"(F), M25x1.5 (According to customer’s requirement)
WORKING TEMPERATURE-40℃-+70℃
WORKING HUMIDITY0-99%RH/ No condensation
SENSOR LIFETIME≥5years
EX-PROOF CERTIFICATEEx db llC T6 Gb/ Ex tb lIIC T80°C Db
IP GRADEIP66
HOUSING MATERIALAluminium alloy/ SS316
OVERALL DIMENSIONS132mmx205mmx118mm(WxHxD)
WEIGHT
1,700g(Aluminium alloy); 3,322g(SS316)

Product structure and construction drawings
